Easy Basics of ECG Learning  is one the challenging for the medical students. While studying the medicine ECG is one of the important topic to master. ECG reading will be difficult if we don’t  know the proper way or the basic . Here are some the basic things which can be easily reading the ECG .

ECG -Basics

Easy Basics of ECG

Normal Impulse Conduction
Sinoatrial node–AV node–Bundle of His–Bundle Branches–Purkinje fibers

Easy Basics of ECG Learning |study notes

The “PQRST”
►    P wave – Atrial   depolarization

QRS – Ventricular    depolarization
T wave – Ventricular   repolarization

The PR Interval
Atrial depolarization
+
delay in AV junction
(AV node/Bundle of His)

(delay allows time for the atria to contract before the ventricles contract)

Pacemakers of the Heart
►    SA Node – Dominant pacemaker with an intrinsic rate of 60 – 100 beats/minute.

►    AV Node – Back-up pacemaker with an intrinsic rate of 40 – 60 beats/minute.

►    Ventricular cells – Back-up pacemaker with an intrinsic rate of 20 – 45 bpm.

The ECG Paper

Easy Basics of ECG Learning |study notes
Easy Basics of ECG Learning |study notes

►    Horizontally
    One small box – 0.04 s
    One large box – 0.20 s
►    Vertically
    One large box – 0.5 mV

►    Every 3 seconds (15 large boxes) is marked by a vertical line.
►    This helps when calculating the heart rate.

ECG 2 -How to Analyze a Rhythm

Easy Basics of ECG Learning |study notes

• Step 1: Calculate rate.
• Step 2: Determine regularity.
• Step 3: Assess the P waves.
• Step 4: Determine PR interval.
• Step 5: Determine QRS duration.

Easy Basics of ECG Learning |study notes

Step 1: Calculate Rate

Easy Basics of ECG Learning |study notes

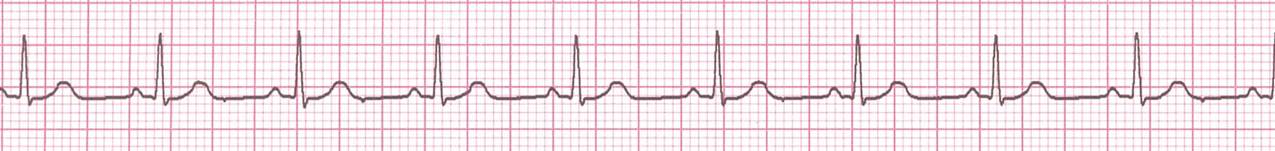

• Option 1
– Count the # of R waves in a 6 second rhythm strip, then multiply by 10.
– Reminder: all rhythm strips in the Modules are 6 seconds in length.

Interpretation? 9 x 10 = 90 bpm

• Option 2

Easy Basics of ECG Learning |study notes

– Find a R wave that lands on a bold line.
– Count the # of large boxes to the next R wave. If the second R wave is 1 large box away the rate is 300, 2 boxes – 150, 3 boxes – 100, 4 boxes – 75, etc.
– Memorize the sequence:
300 – 150 – 100 – 75 – 60 – 50

Step 2: Determine regularity

Easy Basics of ECG Learning |study notes

• Look at the R-R distances (using a caliper or markings on a pen or paper).
• Regular (are they equidistant apart)? Occasionally irregular? Regularly irregular? Irregularly irregular?

Interpretation? Regular

Step 3: Assess the P waves

Easy Basics of ECG Learning |study notes

• Are there P waves?
• Do the P waves all look alike?
• Do the P waves occur at a regular rate?
• Is there one P wave before each QRS?
Interpretation? Normal P waves with 1 P wave for every QRS

Step 4: Determine PR interval

Easy Basics of ECG Learning |study notes

• Normal: 0.12 – 0.20 seconds.
(3 – 5 boxes)

Interpretation?0.12 seconds

Step 5: QRS duration

Easy Basics of ECG Learning |study notes

• Normal: 0.04 – 0.12 seconds.
(1 – 3 boxes)
Interpretation? 0.08 seconds

Rhythm Summary

Easy Basics of ECG Learning |study notes

• Rate 90-95 bpm
• Regularity regular
• P waves normal
• PR interval 0.12 s
• QRS duration 0.08 s
Interpretation?  Normal Sinus Rhythm

ECG 3-Normal Sinus Rhythm (NSR)

Easy Basics of ECG Learning |study notes

•    Etiology: the electrical impulse is formed in the SA node and conducted normally.

•    This is the normal rhythm of the heart; other rhythms that do not conduct via the typical pathway are called arrhythmias.

Easy Basics of ECG Learning |study notes
NSR Parameters
•    Rate                60 – 100 bpm
•    Regularity            regular
•    P waves            normal
•    PR interval            0.12 – 0.20 s
•    QRS duration        0.04 – 0.12 s
Any deviation from above is sinus tachycardia, sinus bradycardia or an arrhythmia

Arrhythmia Formation
Arrhythmias can arise from problems in the:
•    Sinus node
•    Atrial cells
•    AV junction
•    Ventricular cells

SA Node Problems
The SA Node can:
fire too slow— Sinus Bradycardia

fire too fast— Sinus Tachycardia

Atrial Cell Problems
Atrial cells can:

•    fire occasionally from a focus —Premature Atrial Contractions (PACs)

•    fire continuously due to a looping re-entrant circuit —-Atrial Flutter

Atrial Cell Problems
Atrial cells can also:
• fire continuously from multiple foci Atrial Fibrillation

or
fire continuously due to multiple micro re-entrant “wavelets” Atrial Fibrillation

AV Junctional Problems
The AV junction can:

•    fire continuously due to a looping re-entrant circuit–Paroxysmal   Supraventricular Tachycardia
•    block impulses coming from the SA Node–AV Junctional Blocks

Ventricular Cell Problems
Ventricular cells can:
•    fire occasionally from 1 or more foci –Premature Ventricular Contractions (PVCs)
•    fire continuously from multiple foci–Ventricular Fibrillation
•    fire continuously due to a looping re-entrant circuit–Ventricular Tachycardia
